Question:

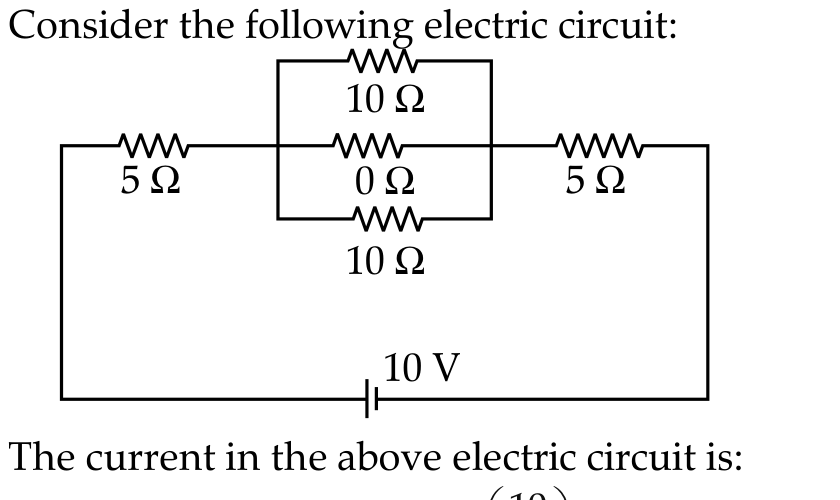

Consider the following electric circuit:
The current in the above electric circuit is:
Consider the following electric circuit:
The current in the above electric circuit is:
Options:
- 1 A
- 10/15 A
- 2 A
- 1.5 A
- 1 A
- 10/15 A
- 2 A
- 1.5 A
Correct Answer: A) 1 A
Explanation:
Req = 5 + 0 + 5 = 10 ohm (the 0 ohm wire short-circuits the other resistors). I = V/Req = 10/10 = 1 A.
Req = 5 + 0 + 5 = 10 ohm (the 0 ohm wire short-circuits the other resistors). I = V/Req = 10/10 = 1 A.
